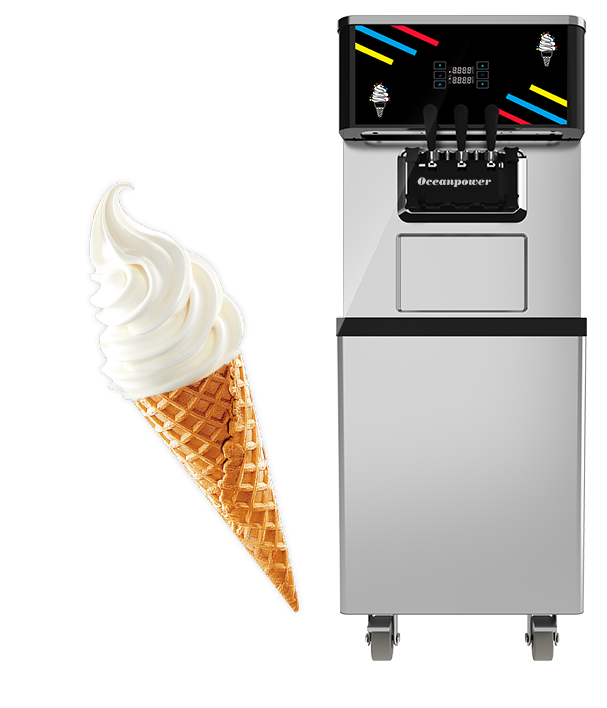

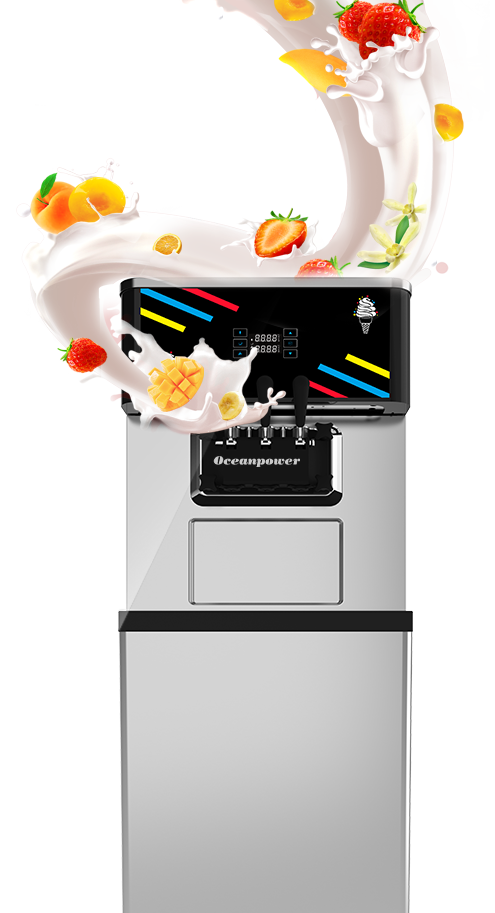

DW138TC
Soft Serve Ice Cream Machine Ice Cream Maker Floor Standing Twin Twist pump feed with Hopper Cooling
DW138TC
High Capacity, Pump Feed
Air pump is optional to be added to add up the overrun of mix.
A high-end model with DW new system which runs on three modes:temperature,current,and timing. It has touch control button, remote control, hopper cooling.
The 1.25 HP Tecumseh compressor has a superior refrigeration and hopper-cooling capability, best economic choice for small or middle business.

Options:
*P: Pump
Contact us for more questions.
Certification:
cb Certification ce CertificationELT CertificationSGS Certification

FEATURES

  • Air cooled
    Minimum Clearance should be 300mm on left,right, and 400mm rear for assuring adequate air flow

  • Electrical
    One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired

  • Customization
    Product customization may be available upon request

FUNCTION ILLUSTRATION

  • 1
    DW Control System

    A new advanced system enables the operation easier and more user-friendly via touch screen & infrared remote control within about 30 meters.

  • 2
    Quick cooling

    With the brilliant France Tecumseh compressor , the first dispensing just needs 8-12 minutes and more than 15 cones can be made continuously.

  • 3
    Broad voltage range

    The ice cream machine can apply to broad voltage range from 180V to 250V.

  • 4
    Mix low alarm

    Low-mix Alarm is to help remind you of the mix adding.

  • 5
    Over-freeze Protection

    Using temperature sensors to avoid over freezing damage.

  • 6
    Pre-cooling

    Hopper cooling feature is able to keep temperature of the mix at or below 41℉(5℃).

  • 7
    Standby Mode

    Standby function and agitator are available on DW150TC & DW165TC.

  • 8
    Compressor&Expand valves

    Tecumseh Compressor (France), Danfoss Expand valves.

SPECIFICATIONS

Technical Data

Model:

DW138TC

Flavors:

2+1 mixed

Production Capacity:

38L/H

Mix Hopper:

2*12L

Cylinder:

2*2L

Power:

2600W

Main Compressor:

1.25HP

Cooling System:

Air Cooled

Refrigerant:

R404A

Options:

Cone Dispenser / Air Pump

Voltage:
220V 50Hz/60Hz, 380V 50Hz
Net Weight(kg):
170
Total Weight(kg):
210
Dimension(mm):
540*770*1450

These specifications are subject to change without notice as further research and development efforts continuously improve the model.
