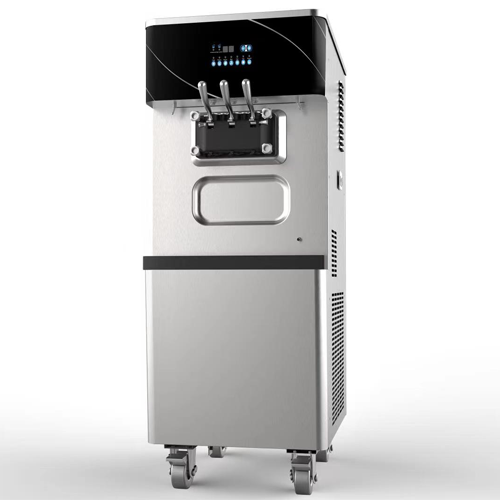

Soft Serve Ice Cream Machine Ice Cream Maker Twin Twist
DW138/150/165TCP
Soft Serve Ice Cream Machine Ice Cream Maker Twin Twist
DW138/150/165TCP
Standard: Pre-Cooling, Mixture Agitator, Stainless Steel Handle, Automatic Rebound Valve Body, Stainless Steel Shell
Options: Air Pump / Italian Gear Pump

Indepent Air Pump Control System

according to users' need and different ice cream mixture characteristics, it will be able to produce a stable ice-cream overrun between 30%-60%.


Contact us for more questions.

FEATURES

  • Air cooled
    Minimum Clearance should be 300mm on left,right, and 400mm rear for assuring adequate air flow

  • Electrical
    One dedicated electrical connection is required. Check with local electrician for cord and receptacle specifications if 50 Hz or 60 Hz Equipment is desired

  • Customization
    Product customization may be available upon request

FUNCTION ILLUSTRATION

  • 1
    Functions centralization

    A new advanced system enables the operation easier . Be equiped with automatic, cleaning, sleep and other basic operating functions and a variety of alarm prompts. Rebound pistons—control ice cream making speed Automatic handles homing—press the handles and auto return back.

  • 2
    Quick cooling

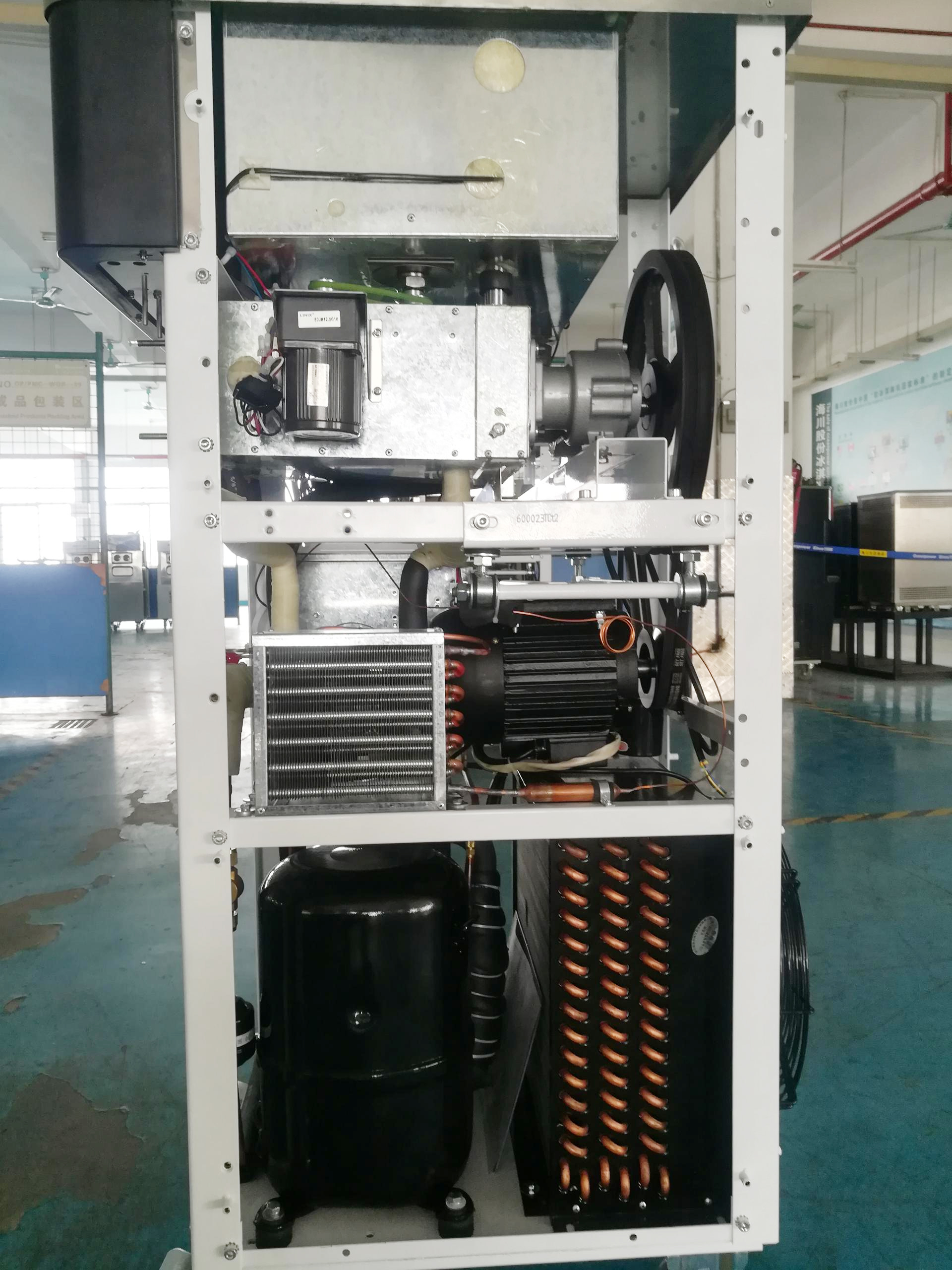

    With compressor 2HP Tecumseh, the first dispensing just needs 10-12 minutes and more than 18 cones can be made continuously.

  • 3
    Magnetic hopper agitator

    Magnetic hopper agitator can avoid stratification of ice cream mix due to long time stewing.

  • 4
    Mix low alarm

    The low liquid alarm will sound when the hopper is lack of ice cream mix.

  • 5
    Over-freeze Protection

    With temperature sensor for low temperature protection.

  • 6
    Pre-cooling

    Hopper cooling feature is able to keep temperature of the mix at or below 41℉(5℃).

SPECIFICATIONS

Technical Data

Model

DW138TCP/DW150TCP/DW165TCP

Flavors

2+1 mixed

Production Capacity

38L/H  50L/H  65L/H

Mix Hopper

2*12L

Cylinder

2*2L

Power

2800W/3000W/3800W

Main Compressor

1.5HP/2HP/3HP

Cooling System

Air Cooled

Refrigerant


R404A(Standard) / R448A(Option)


Standard
Pre-Cooling, Mixture Agitator, Stainless Steel
Handle, Automatic Rebound Valve Body, Stainless
Steel Shell

Options

Air Pump / Gear Pump

Voltage
220V/380V- 50Hz/60Hz
Net Weight /Total Weight(kg):
210/240kg  220/259kg 220/259kg
Dimension
540*770*1450mm

These specifications are subject to change without notice as further research and development efforts continuously improve the model.
